Medisys Gold Ventilator – Medivent
Technical Specifications:
| Gas Supply | Air and Oxygen at 3 to 4 kg/Cm2 |
| Modes | VC, PC,PRVC,PS,VS,SIMV(VC) + PS, SIMV(PC)+PS,SIMV(PRVC)+PS, 2PAP = PS, APRV & Autoshift Interactive |
| FiO2 | 21 to 100% |
| Tidal Volume | 50 to 1500 ml |
| Frequency | 1 to 50 breathes/min |
| Inspiratory Time | 0.4 to 3 seconds |
| Plateau Time | 0 to 3 secs |
| PEEP | 0 to 30 cmH2O |
| Sensitivity | Pressure (1 to 10 cmH2O), Flow (1 to 10 LPM) below PEEP |
| PCV | 0-40 cmH2o |
| PSV | 0-30 cmH2O |
| 2PAP | EPAP 0 to 30 cmH2O, IPAP 0 to 40 cmH2O, Frequency 6 to 30 per min, IPAP time 0.5 to 5 secs |
| APRV | 3–24 cm H2O @ 6 to 16 times per minute |
| Demand Flow | 120 Litres/ min |
| Patient Data | Insp. Tidal volume, Exp tidal Volume, VT (spont), PIP, Plateau pressure, MAP, Rate, FiO2, I /E ratio |
| Alarms | High/ low pressure, high/low VT high / low FiO2, oxygen/ air failure, Patient disconnection & Apnea |
| Indications | Functional Events, Air /O2 fail, Faulty O2 sensor, Inverse I/E ratio |
| Power input | 200-240 VAC, 50 Hz |
| Battery Backup | 3 hrs |
Original price was: ₹954,509.00.₹783,200.00Current price is: ₹783,200.00.
Add to wishlist Add to compareAsk about productDescription

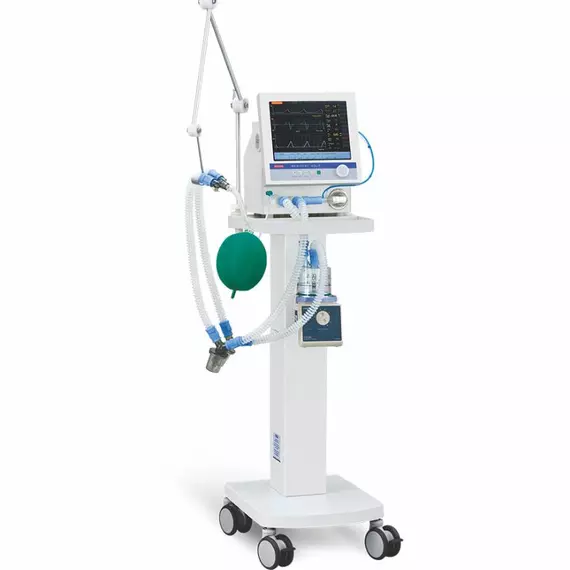

Medisys Gold Ventilator – Medivent : Product description
The Medisys Medivent Gold Ventilator is a high-performance device designed to provide effective respiratory support for critically ill patients. It features advanced technology that enables breath-to-breath correction, ensuring precise delivery of tidal volume. The ventilator can automatically switch between controlled and support modes based on the patient’s breathing pattern, improving comfort and efficiency. Its highly sensitive sensors enhance synchronization with the patient’s natural breathing. Additionally, the inclusion of non-invasive ventilation (NIV) adds to its versatility, making it suitable for a wide range of clinical scenarios.
Features:
- Large, full-color TFT display for clear monitoring
- Displays Pressure-Time (P-T), Flow-Time (F-T), and Volume-Time (V-T) curves
- Shows Pressure-Volume (PV) and Flow-Volume (FV) loops
- Built-in nebulization function for medication delivery
- Patient data display for easy tracking and review
- Supports both pressure-controlled and volume-controlled ventilation
- Offers pressure and flow-based triggering for better patient response.
